compare CPMG echo

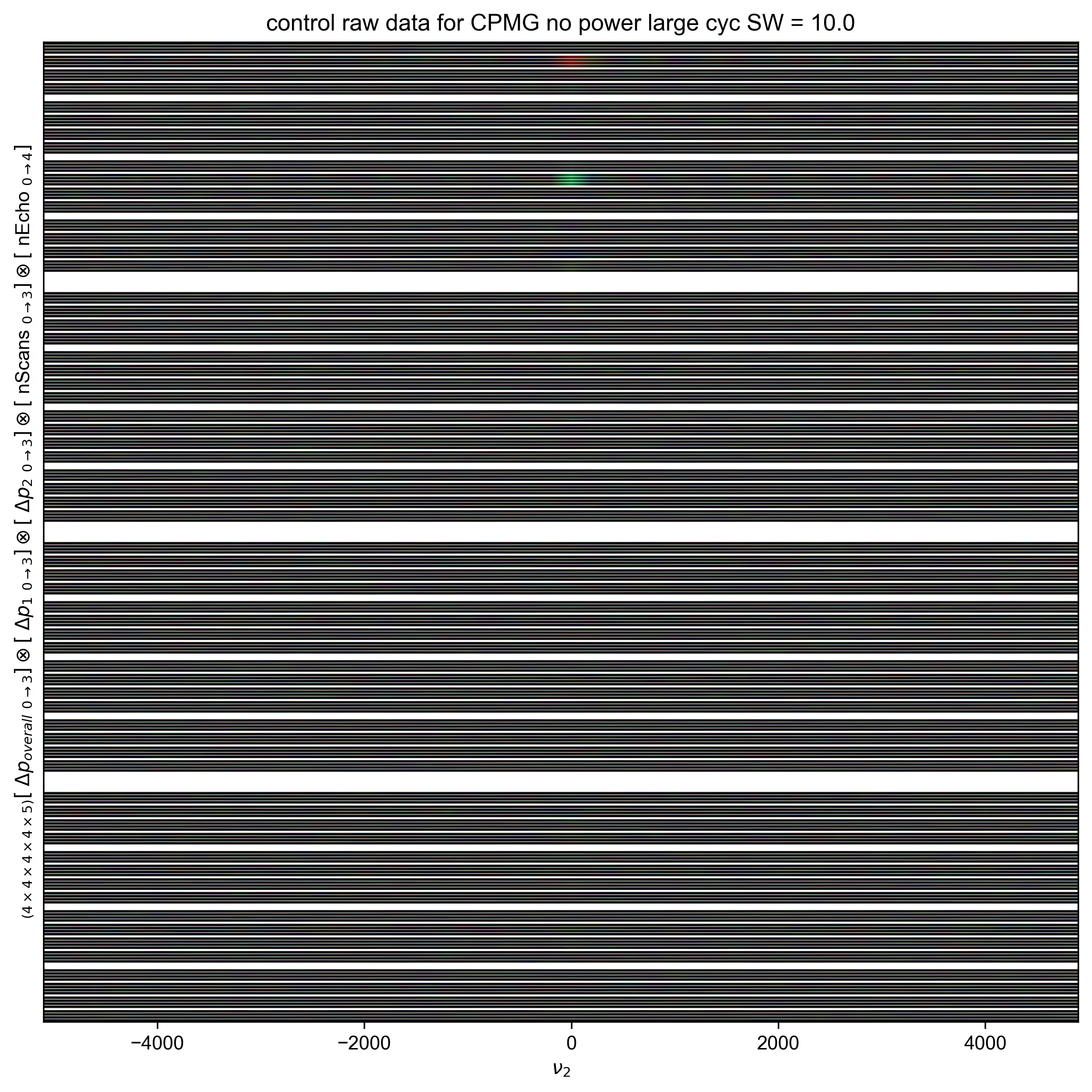

  • control raw data for CPMG no power large cyc SW = 10.0

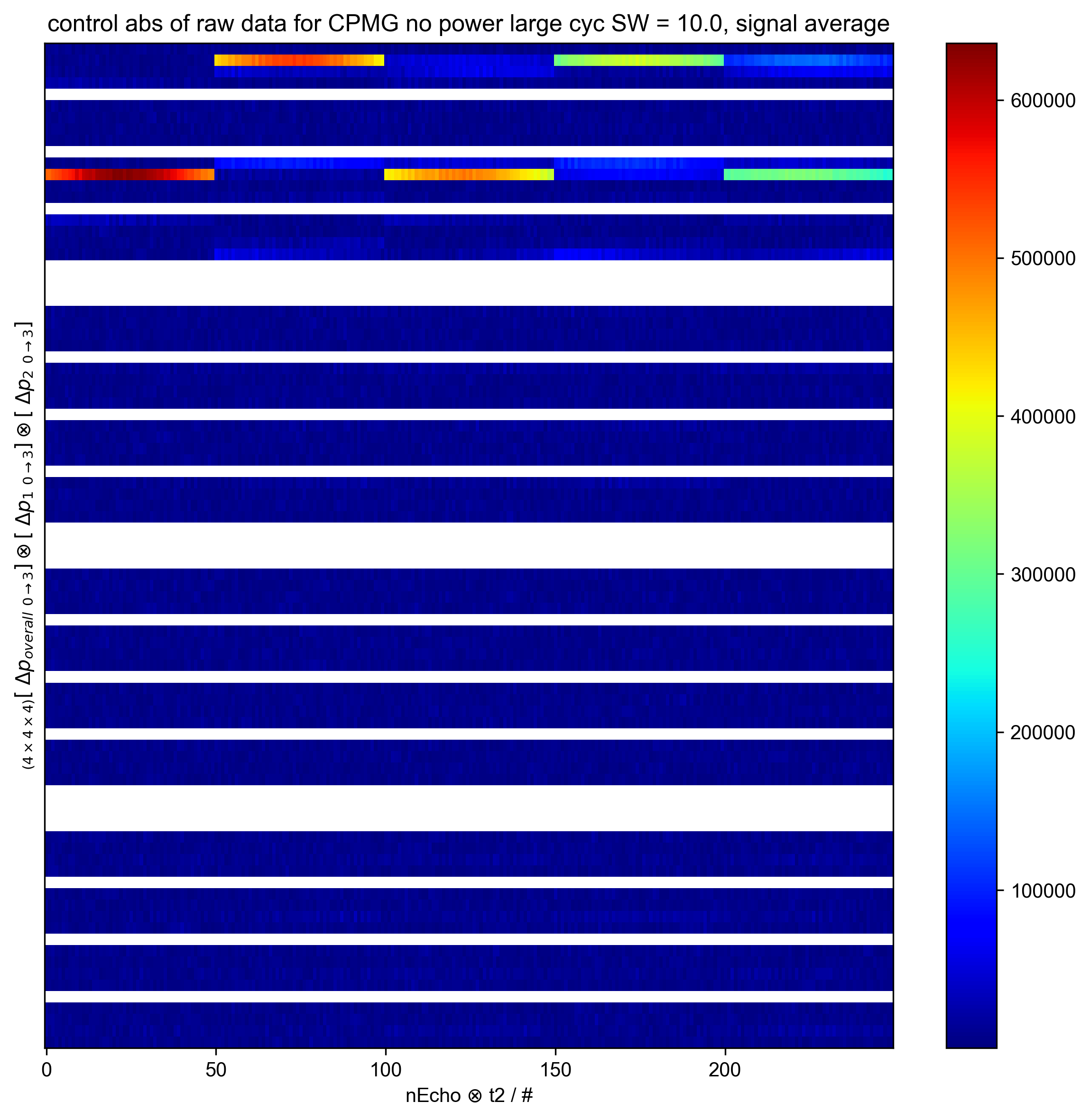

  • control abs of raw data for CPMG no power large cyc SW = 10.0, signal average

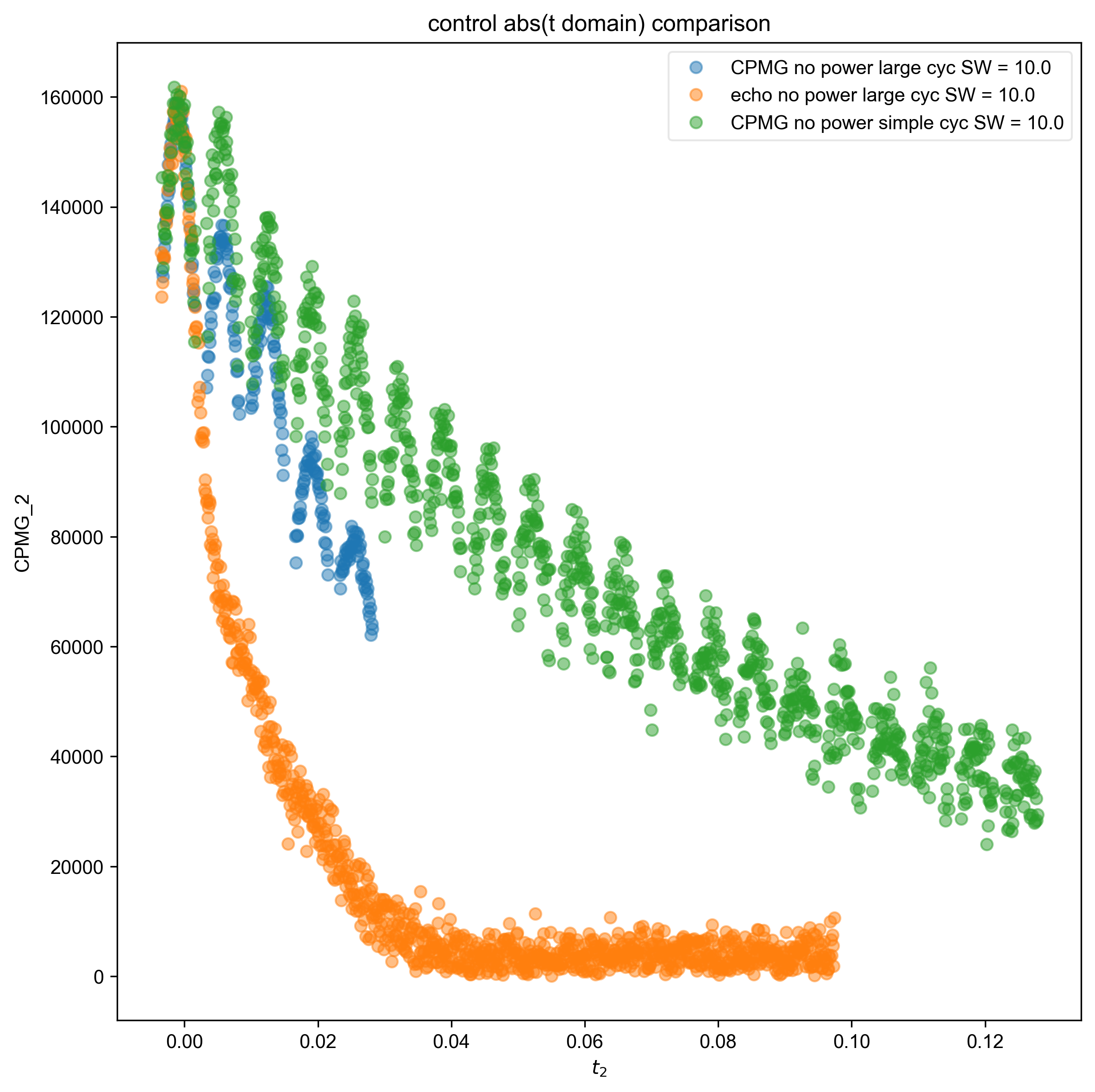

  • control abs(t domain) comparison

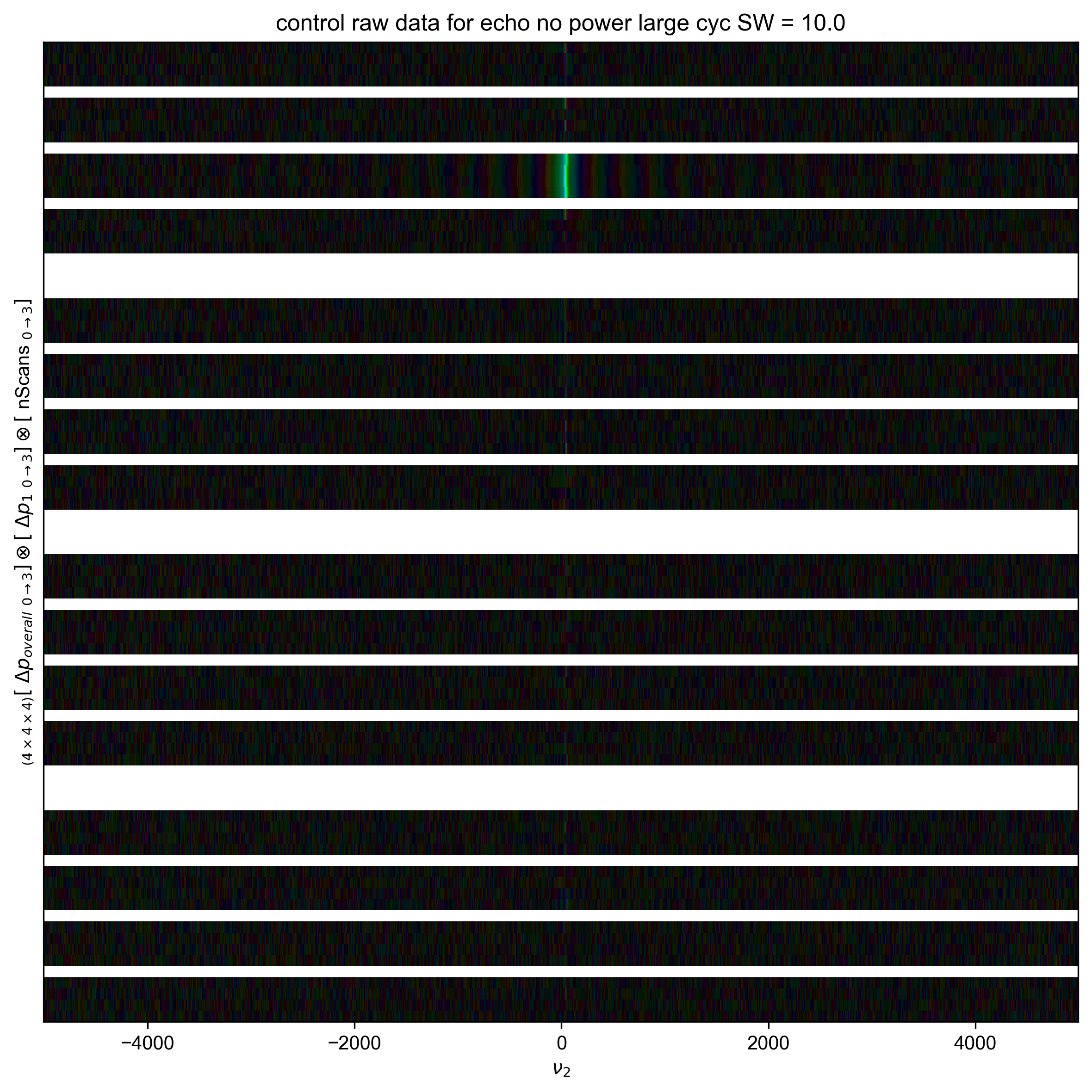

  • control raw data for echo no power large cyc SW = 10.0

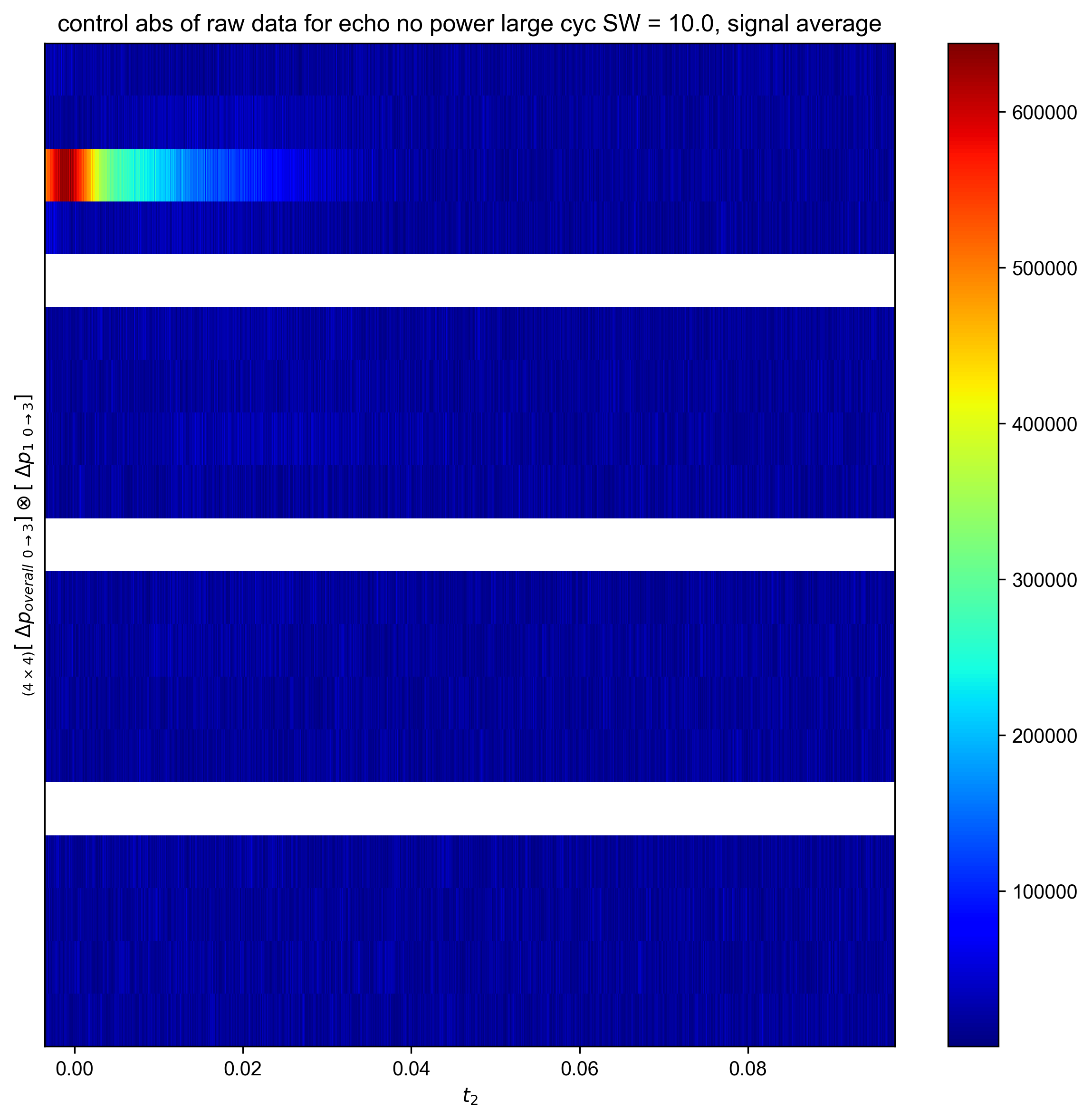

  • control abs of raw data for echo no power large cyc SW = 10.0, signal average

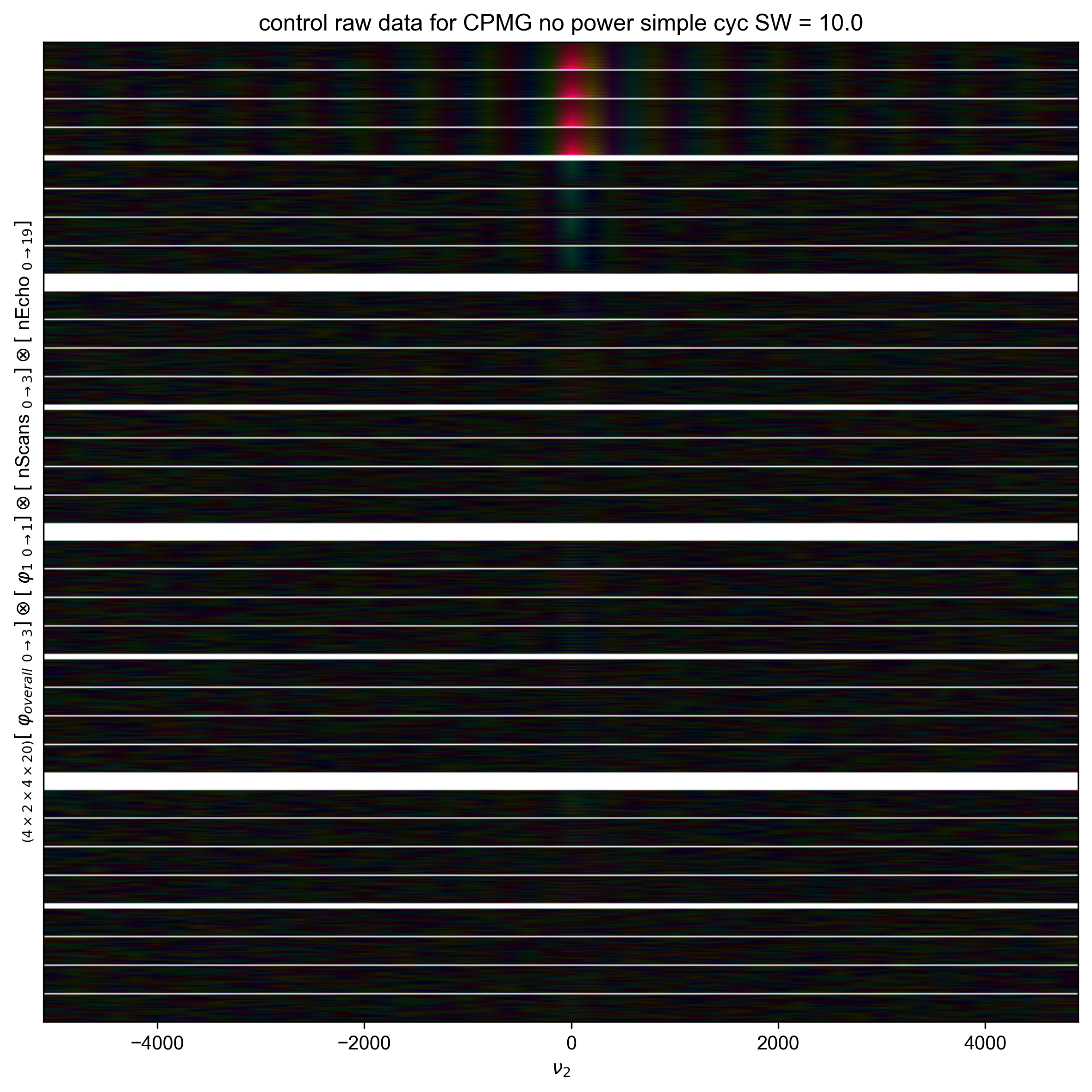

  • control raw data for CPMG no power simple cyc SW = 10.0

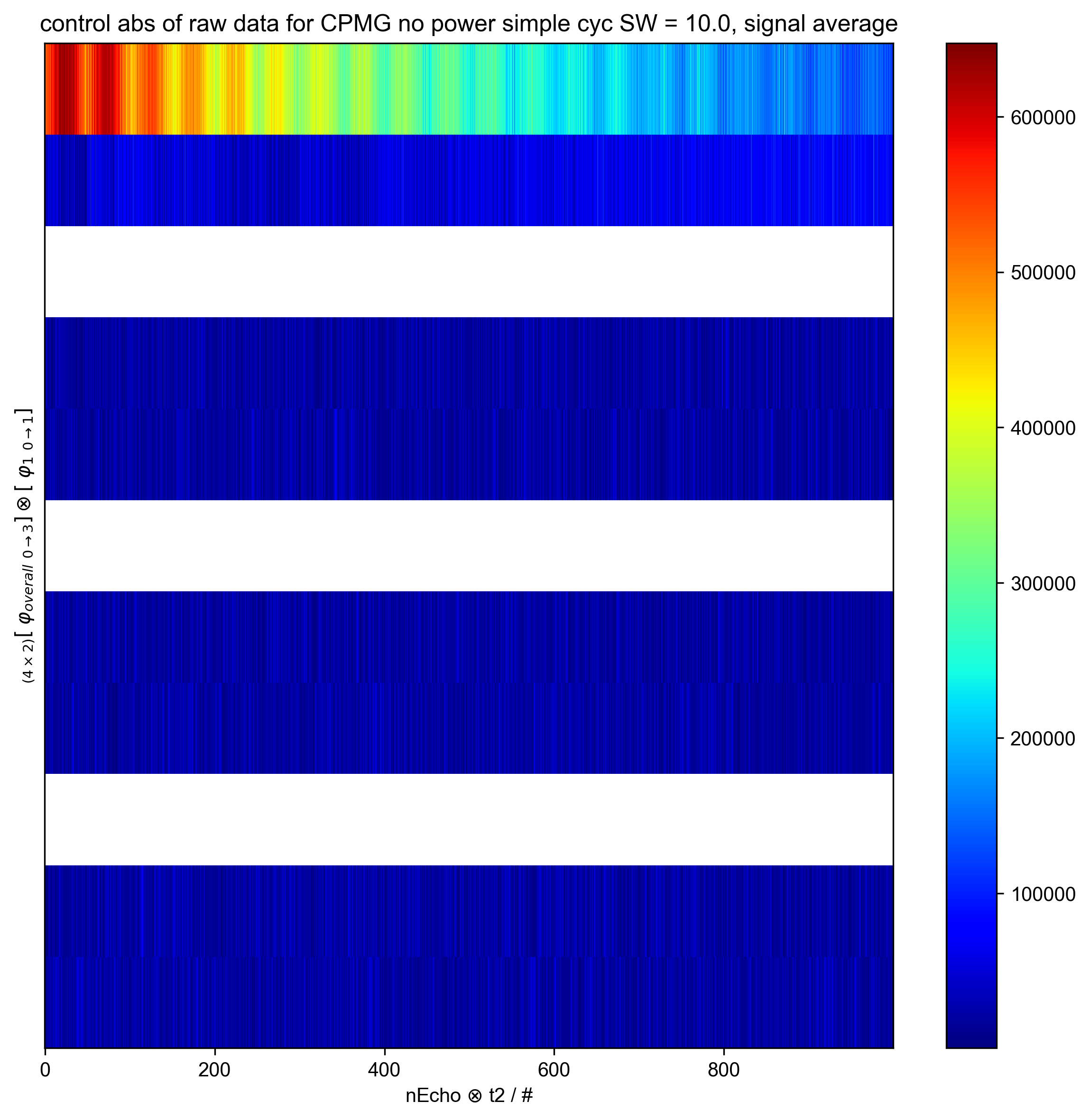

  • control abs of raw data for CPMG no power simple cyc SW = 10.0, signal average
  • no power raw data for CPMG no power large cyc SW = 10.0

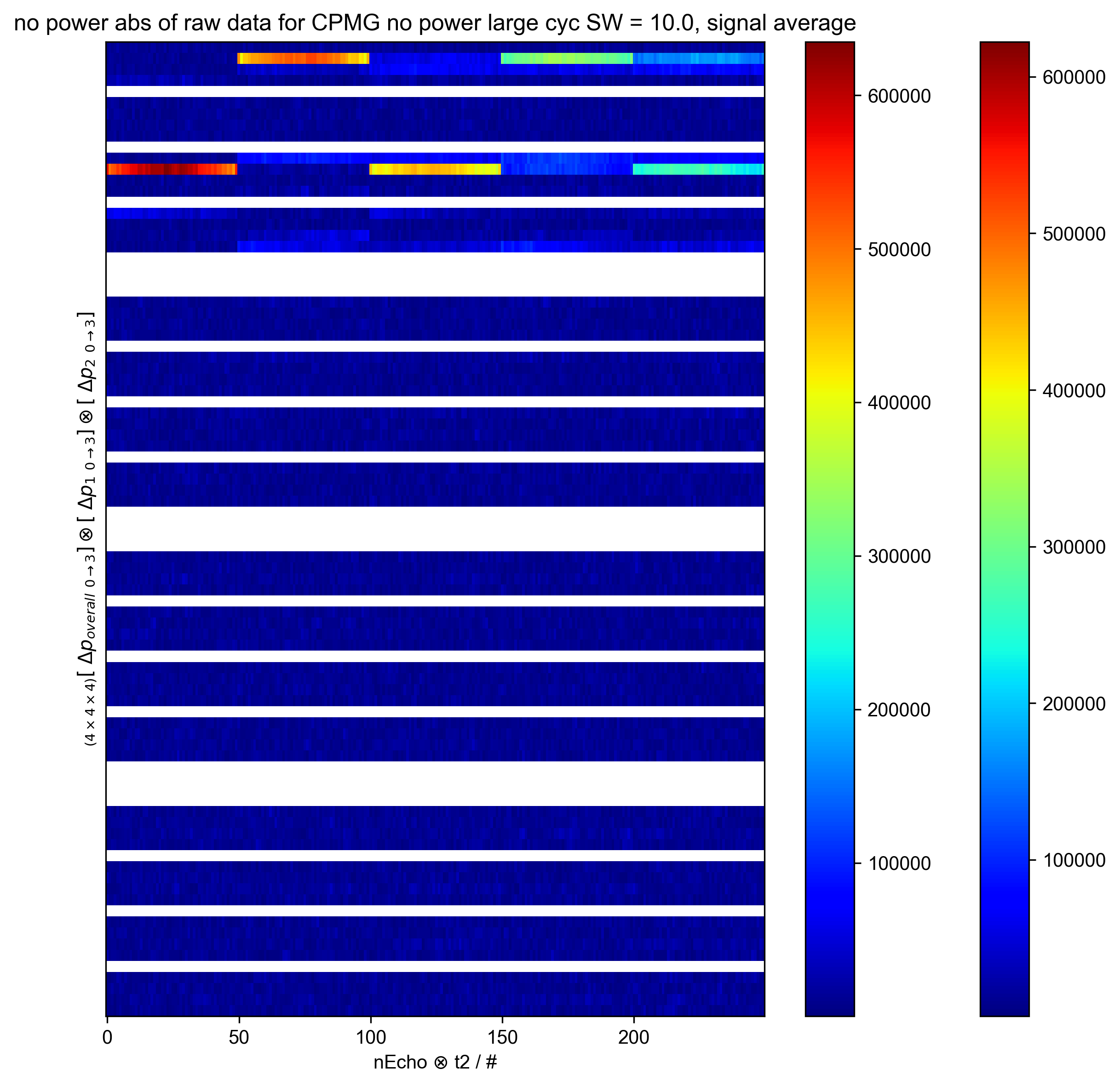

  • no power abs of raw data for CPMG no power large cyc SW = 10.0, signal average

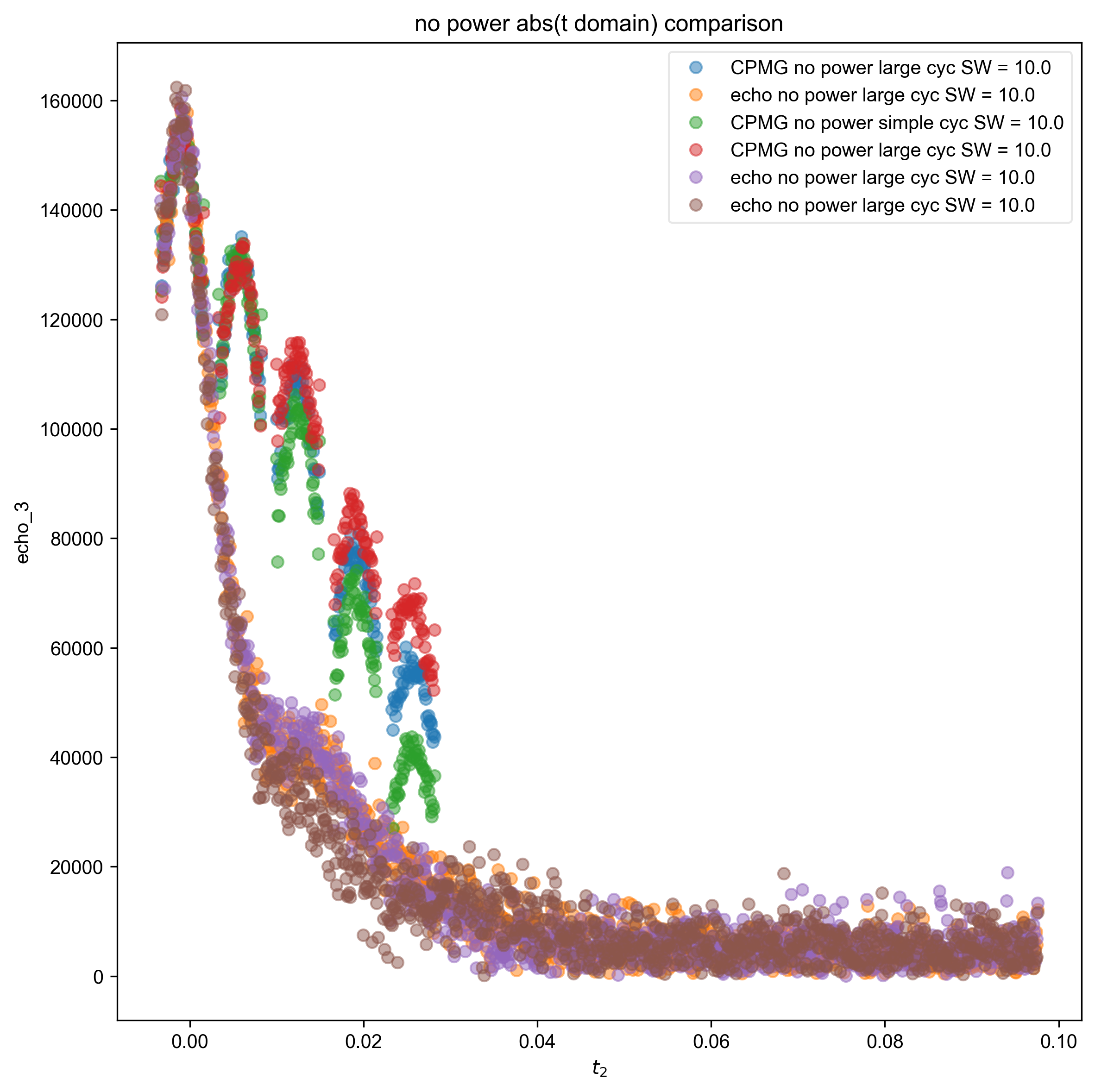

  • no power abs(t domain) comparison

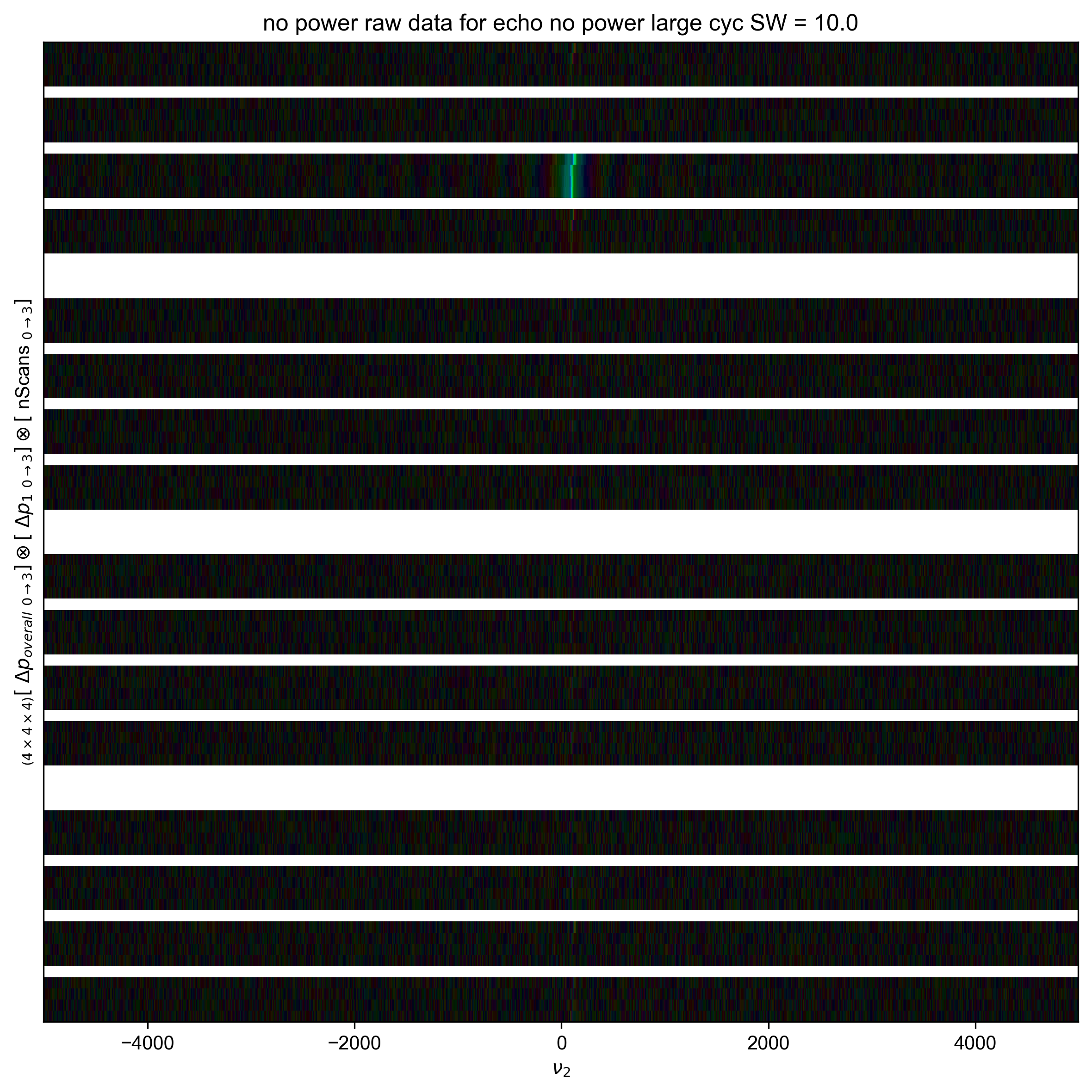

  • no power raw data for echo no power large cyc SW = 10.0

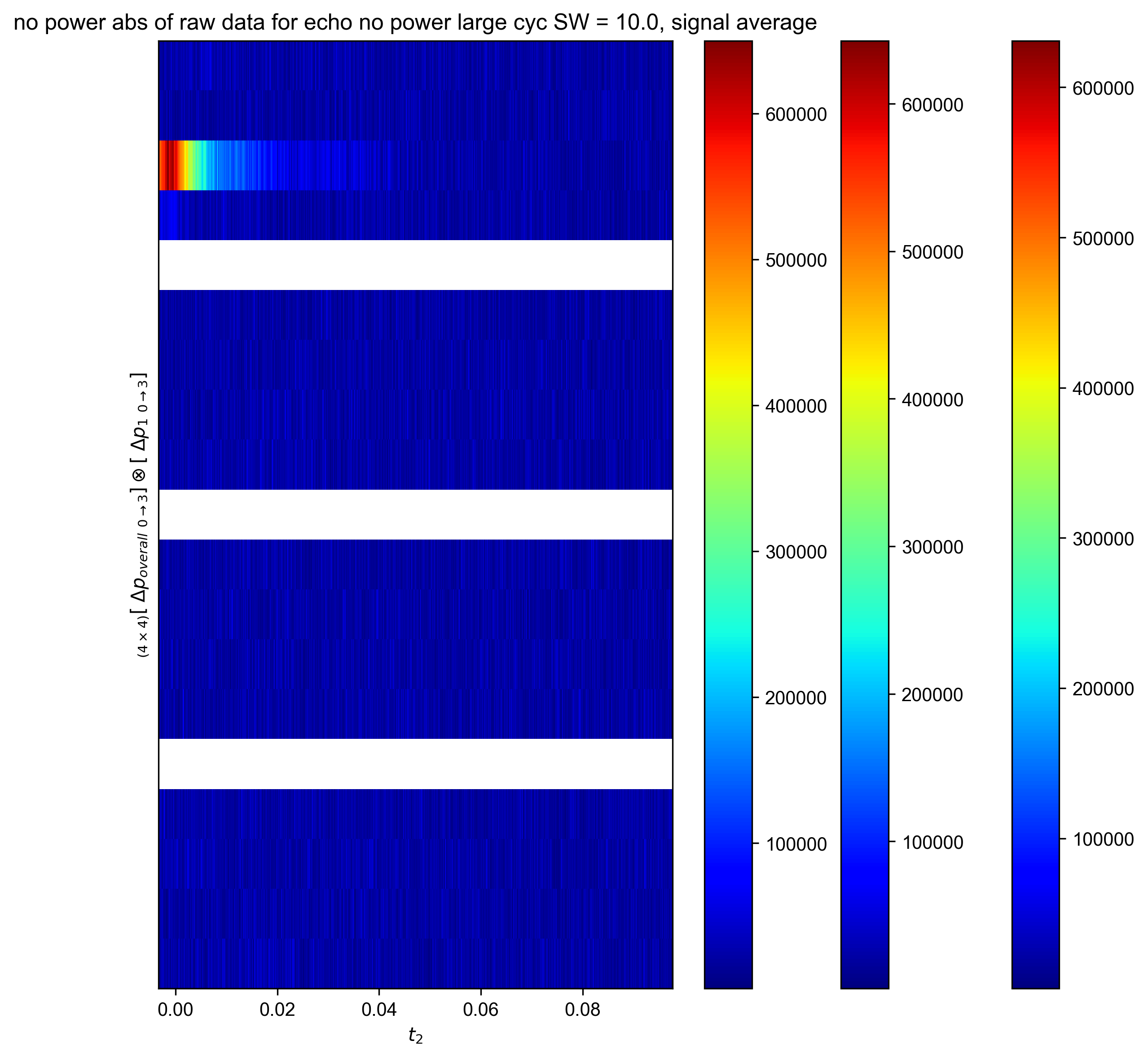

  • no power abs of raw data for echo no power large cyc SW = 10.0, signal average

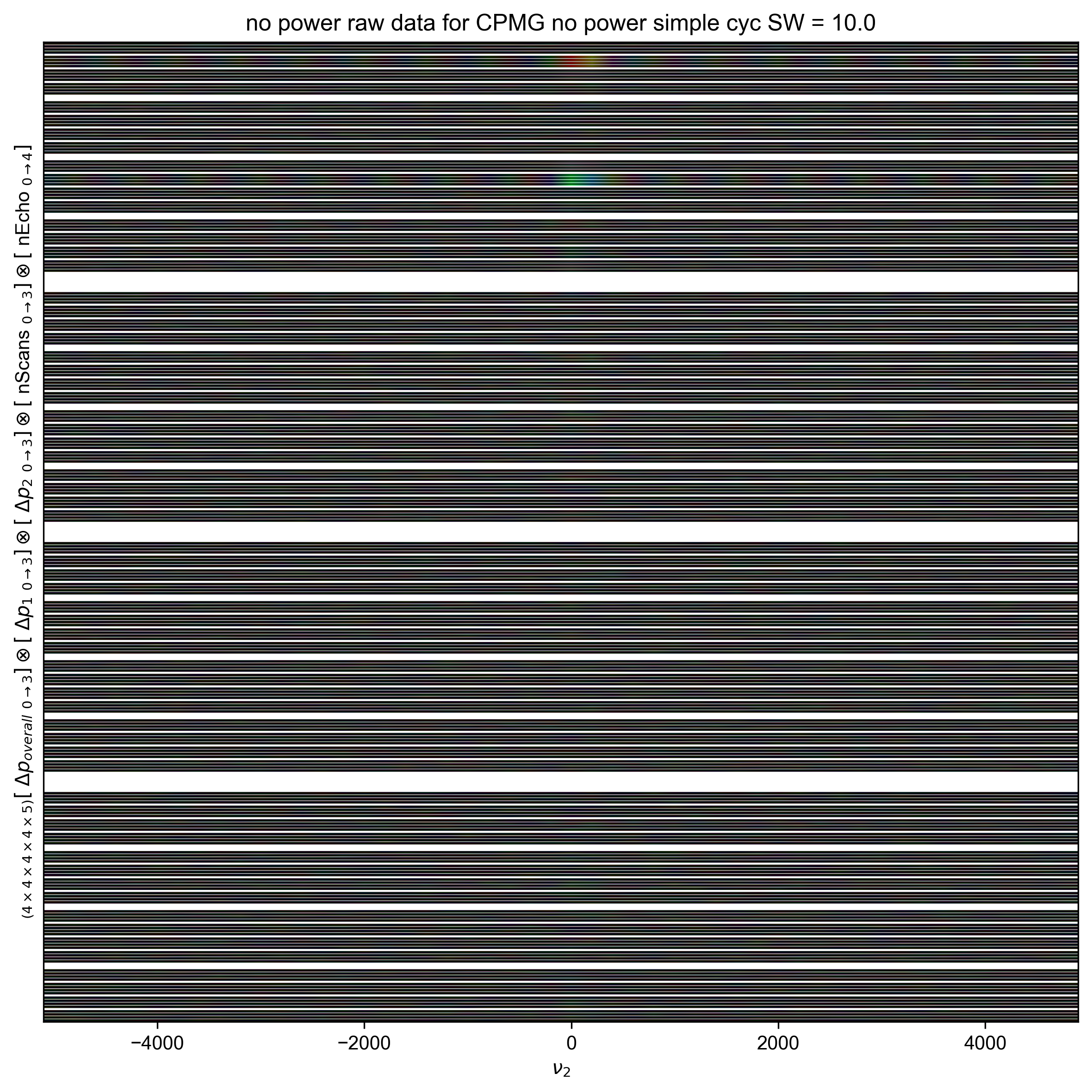

  • no power raw data for CPMG no power simple cyc SW = 10.0
  • no power abs of raw data for CPMG no power simple cyc SW = 10.0, signal average

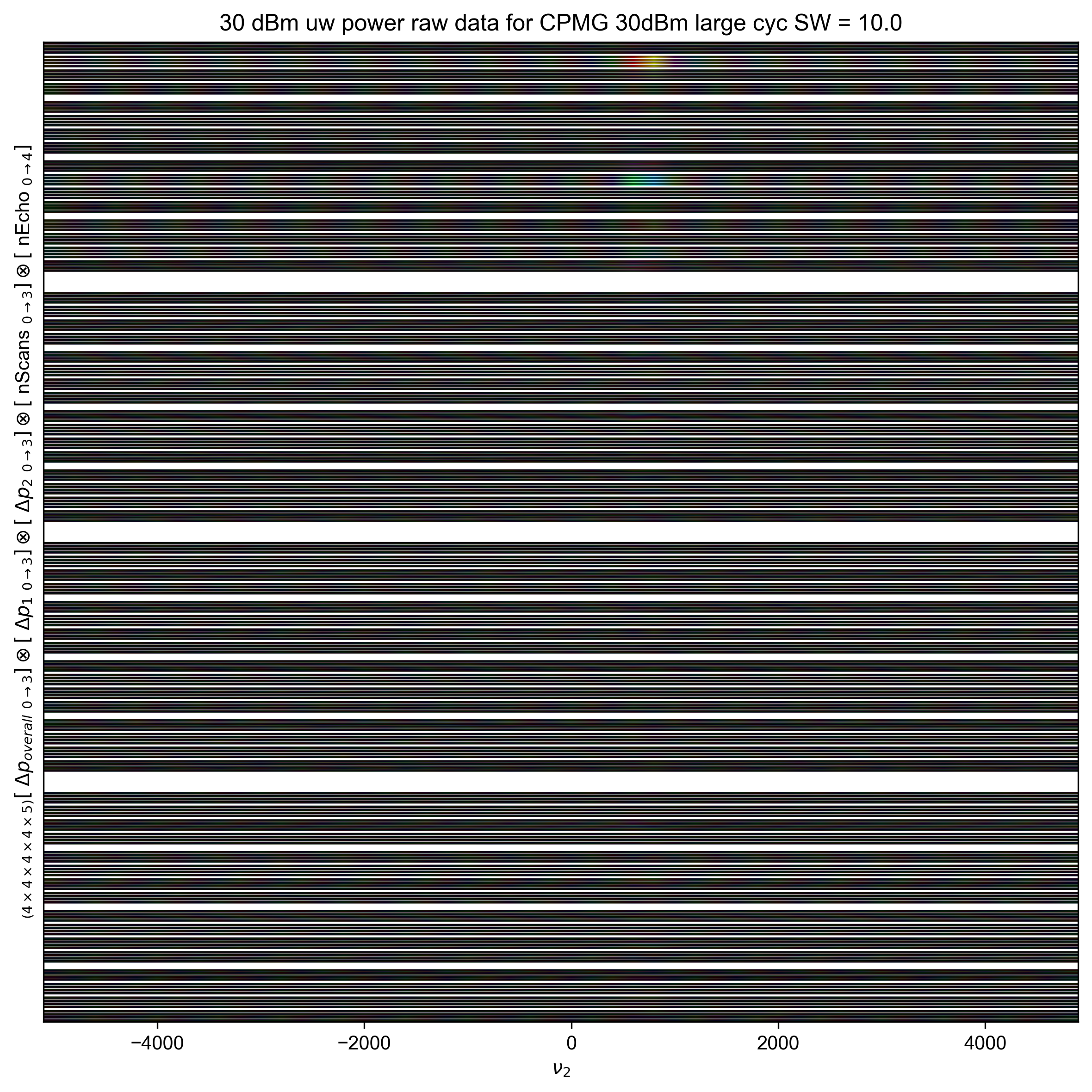

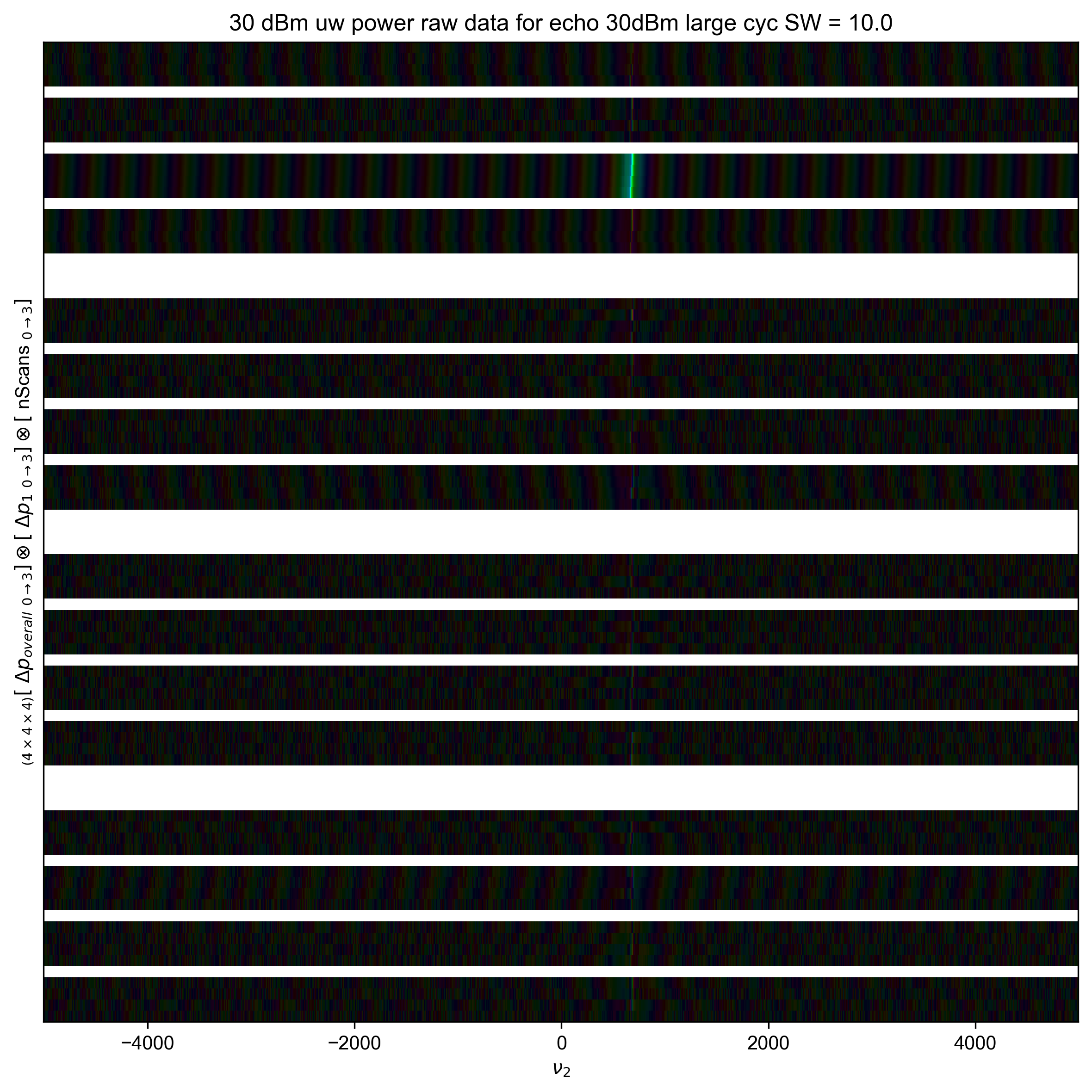

  • 30 dBm uw power raw data for CPMG 30dBm large cyc SW = 10.0

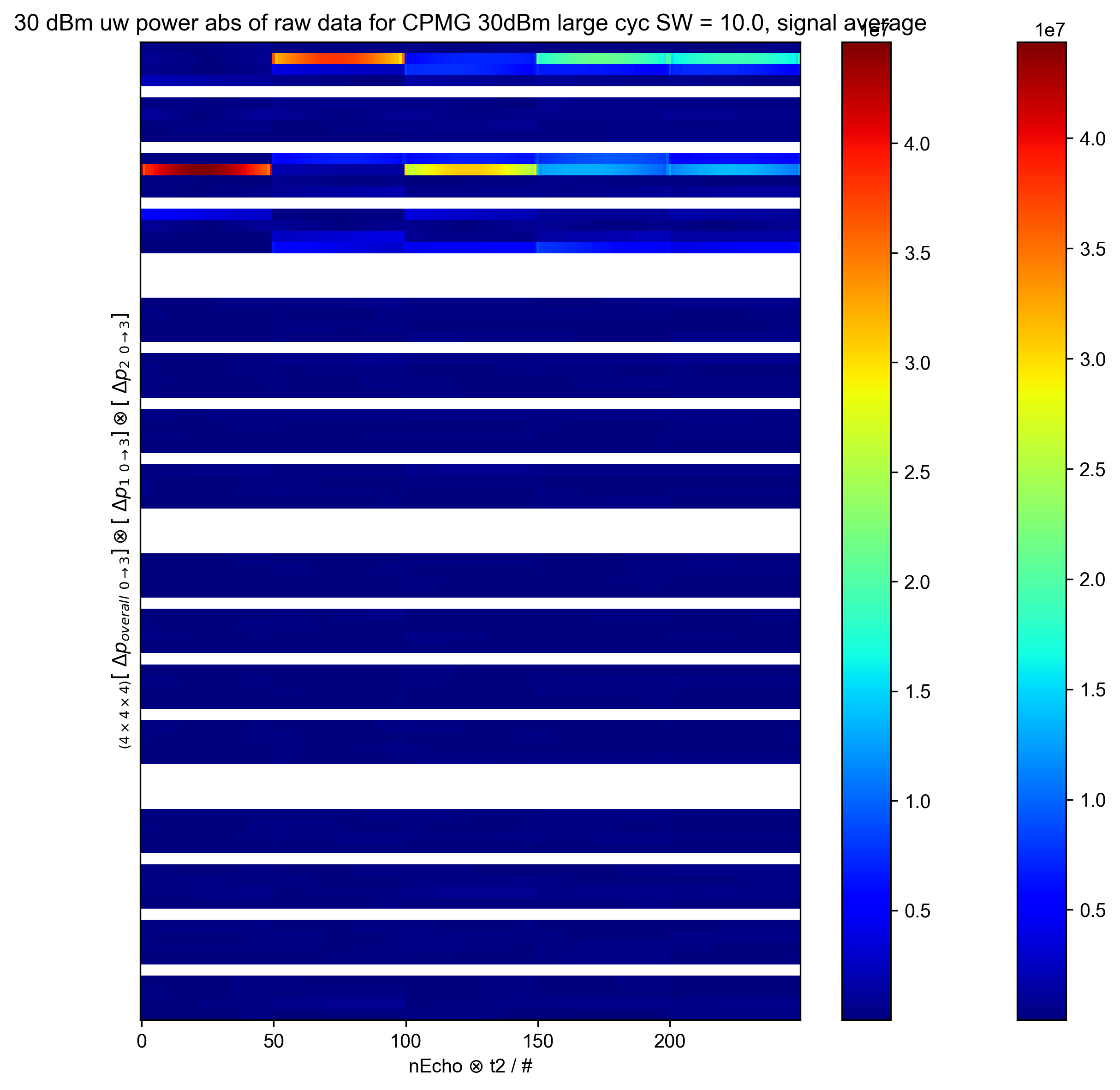

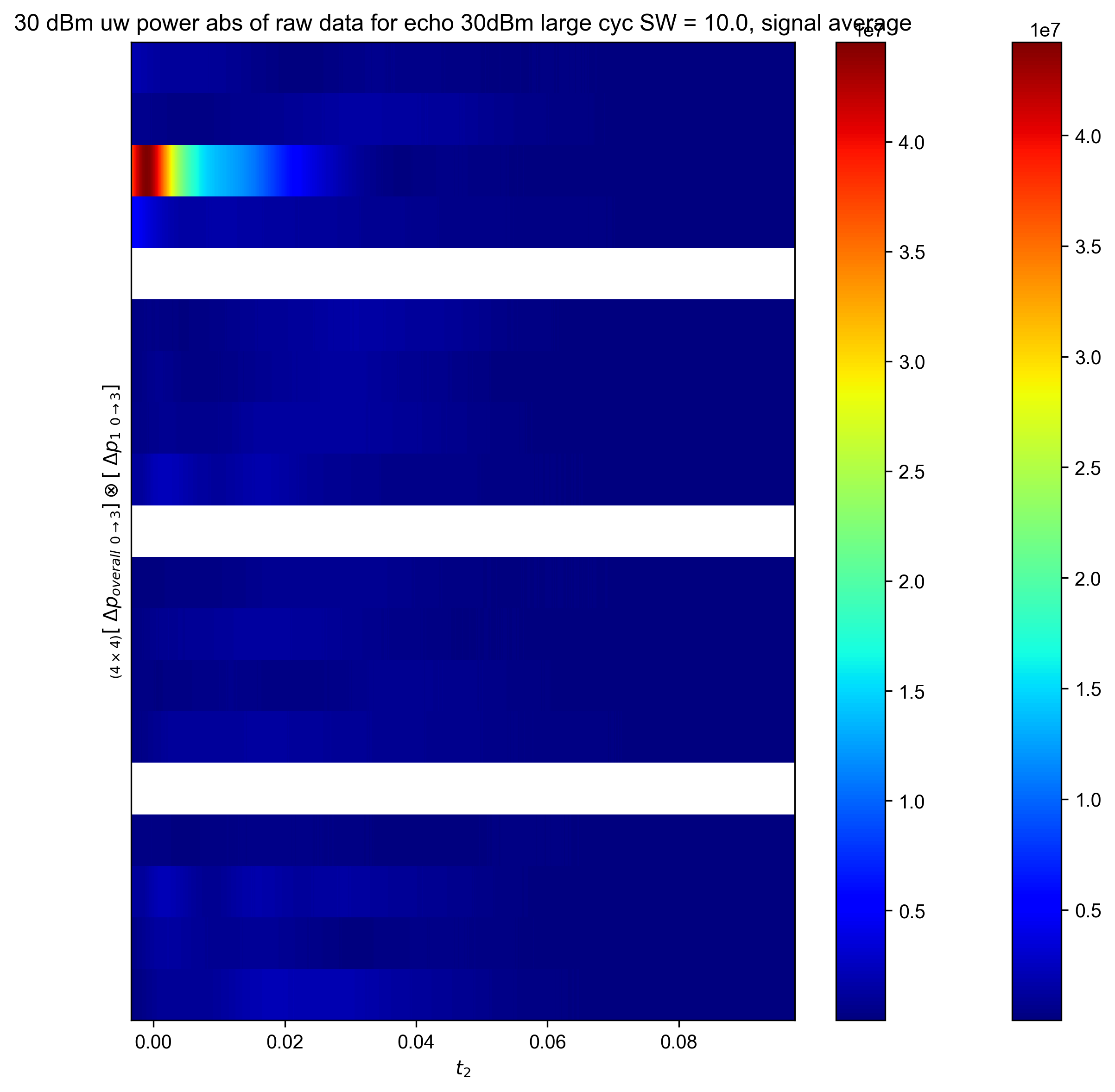

  • 30 dBm uw power abs of raw data for CPMG 30dBm large cyc SW = 10.0, signal average

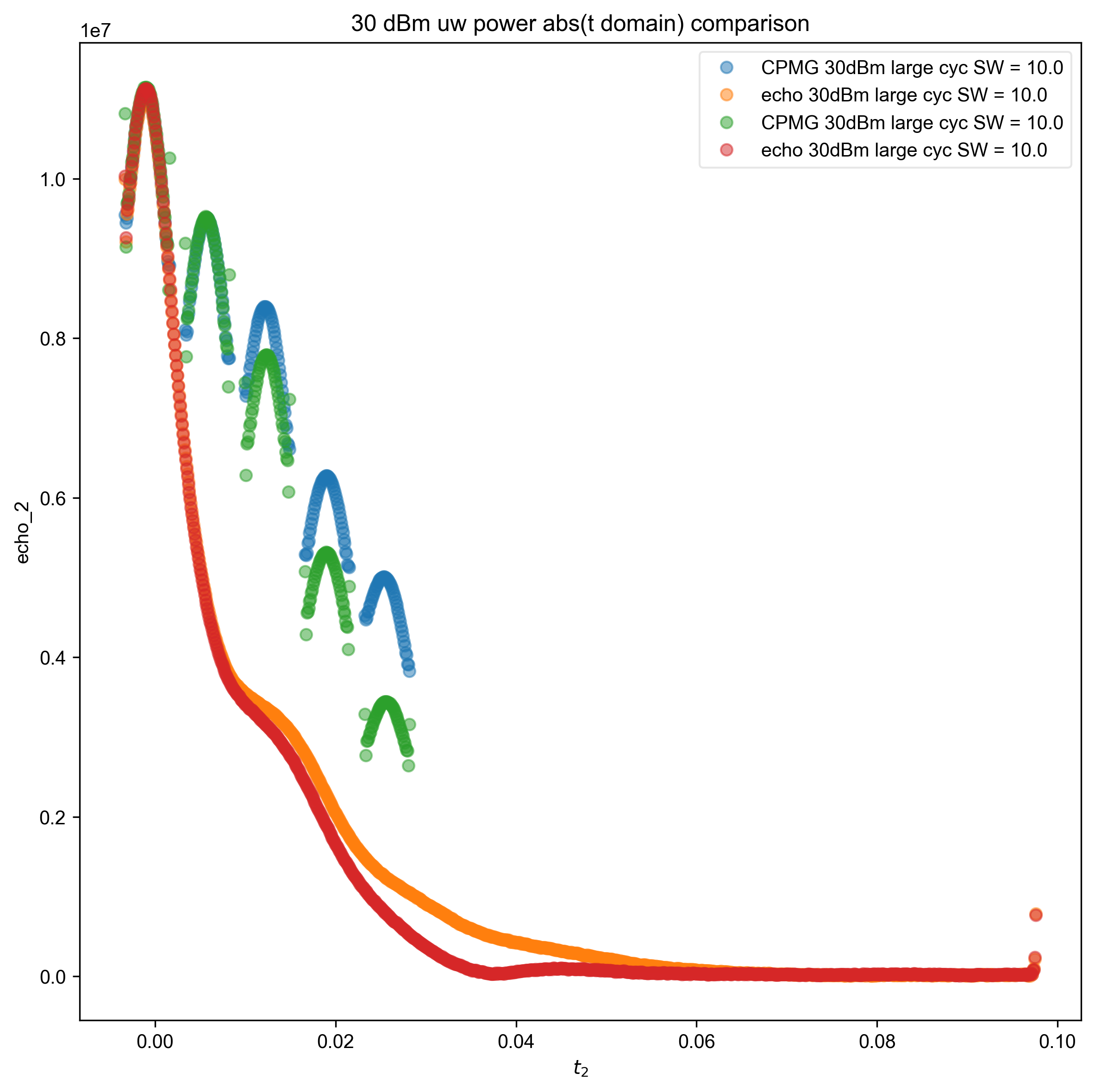

  • 30 dBm uw power abs(t domain) comparison
  • 30 dBm uw power raw data for echo 30dBm large cyc SW = 10.0
  • 30 dBm uw power abs of raw data for echo 30dBm large cyc SW = 10.0, signal average

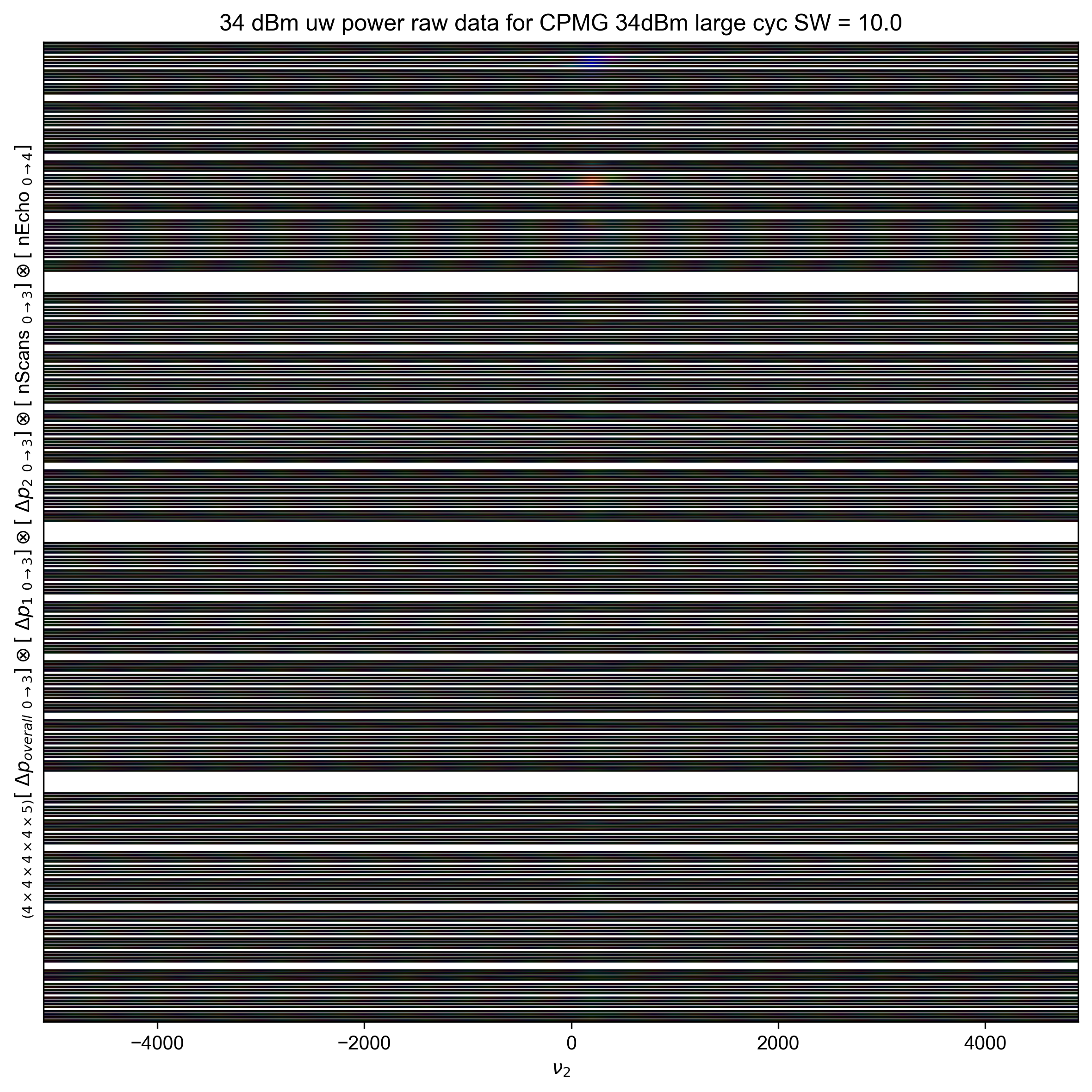

  • 34 dBm uw power raw data for CPMG 34dBm large cyc SW = 10.0

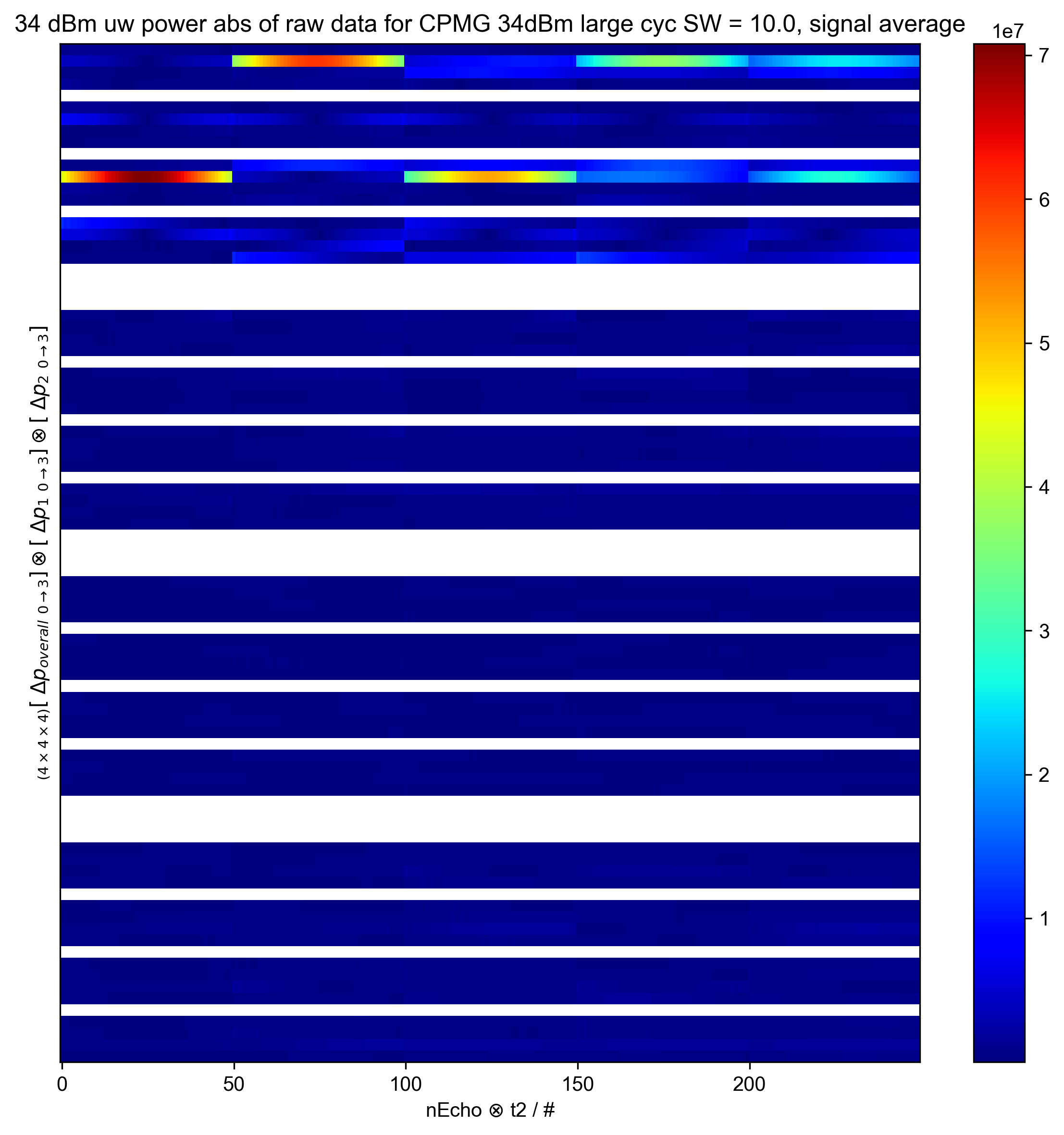

  • 34 dBm uw power abs of raw data for CPMG 34dBm large cyc SW = 10.0, signal average

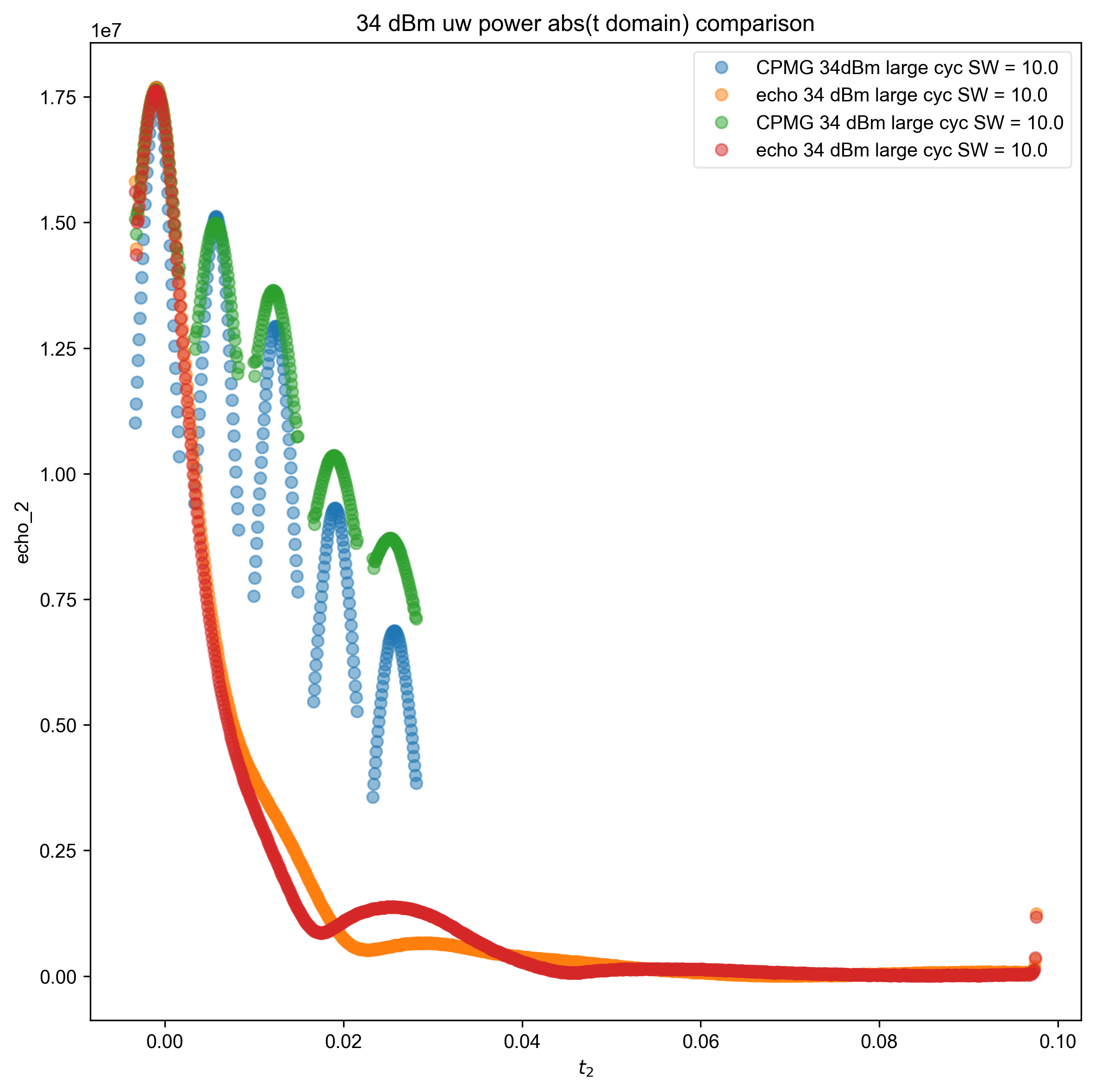

  • 34 dBm uw power abs(t domain) comparison

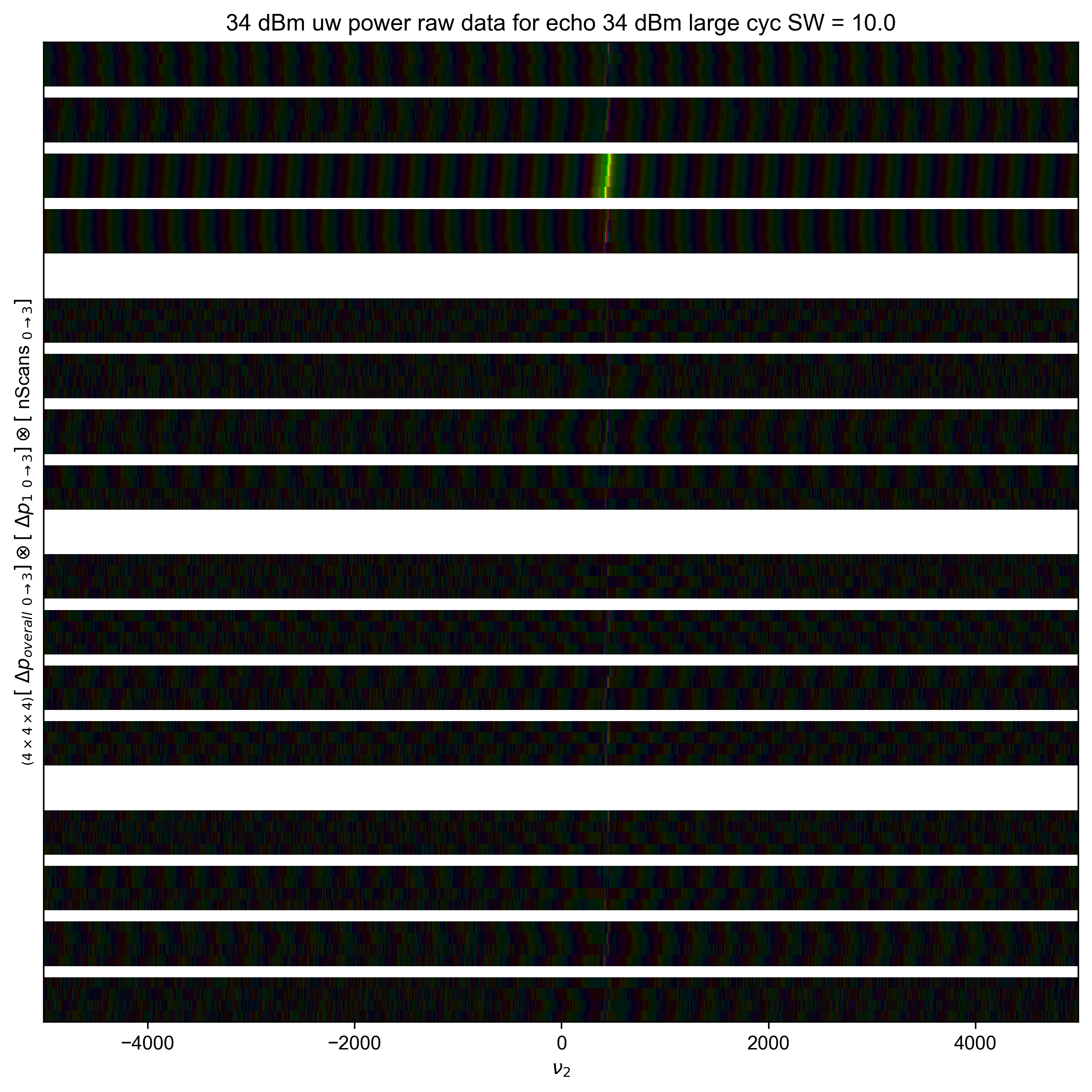

  • 34 dBm uw power raw data for echo 34 dBm large cyc SW = 10.0

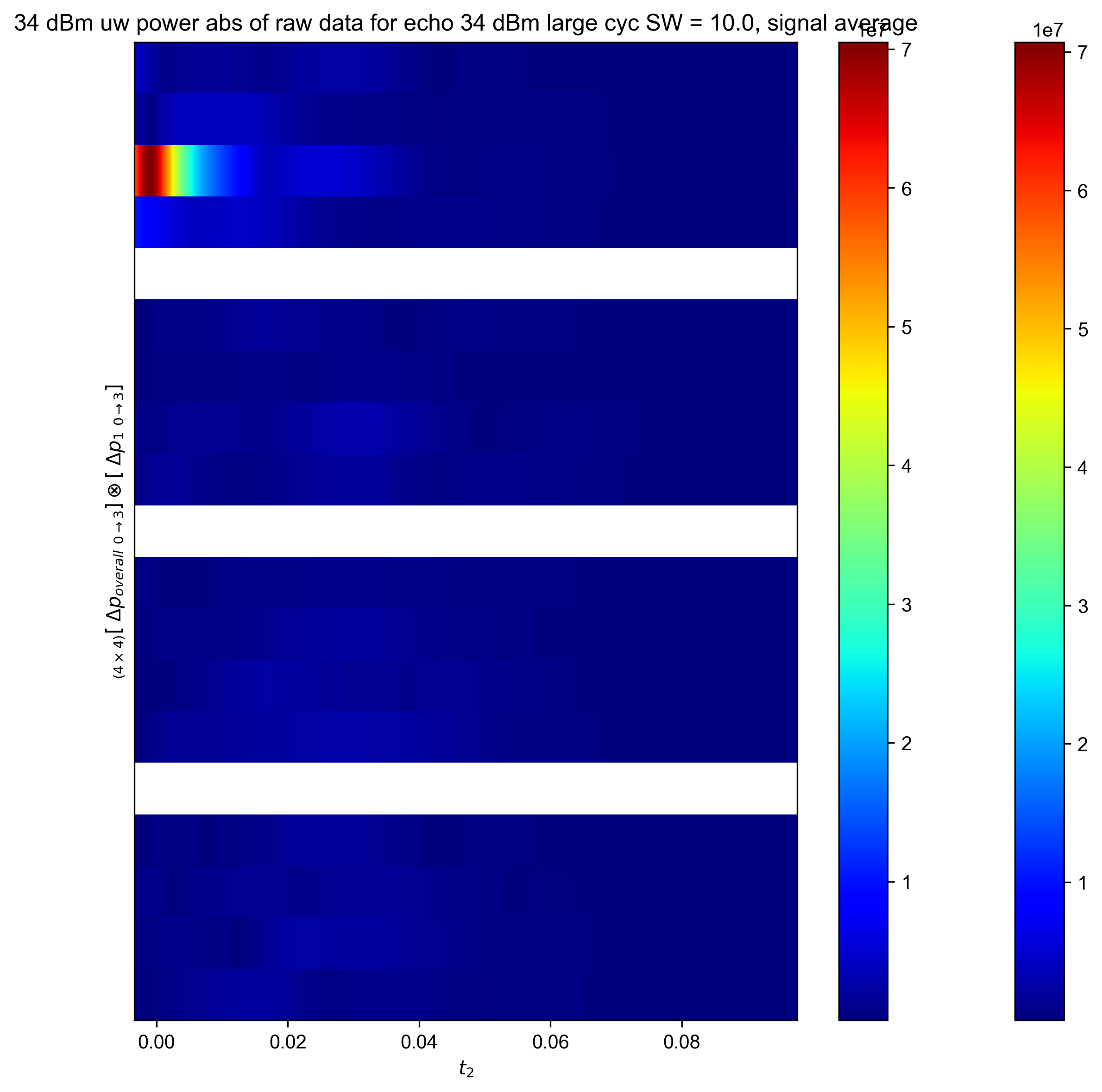

  • 34 dBm uw power abs of raw data for echo 34 dBm large cyc SW = 10.0, signal average

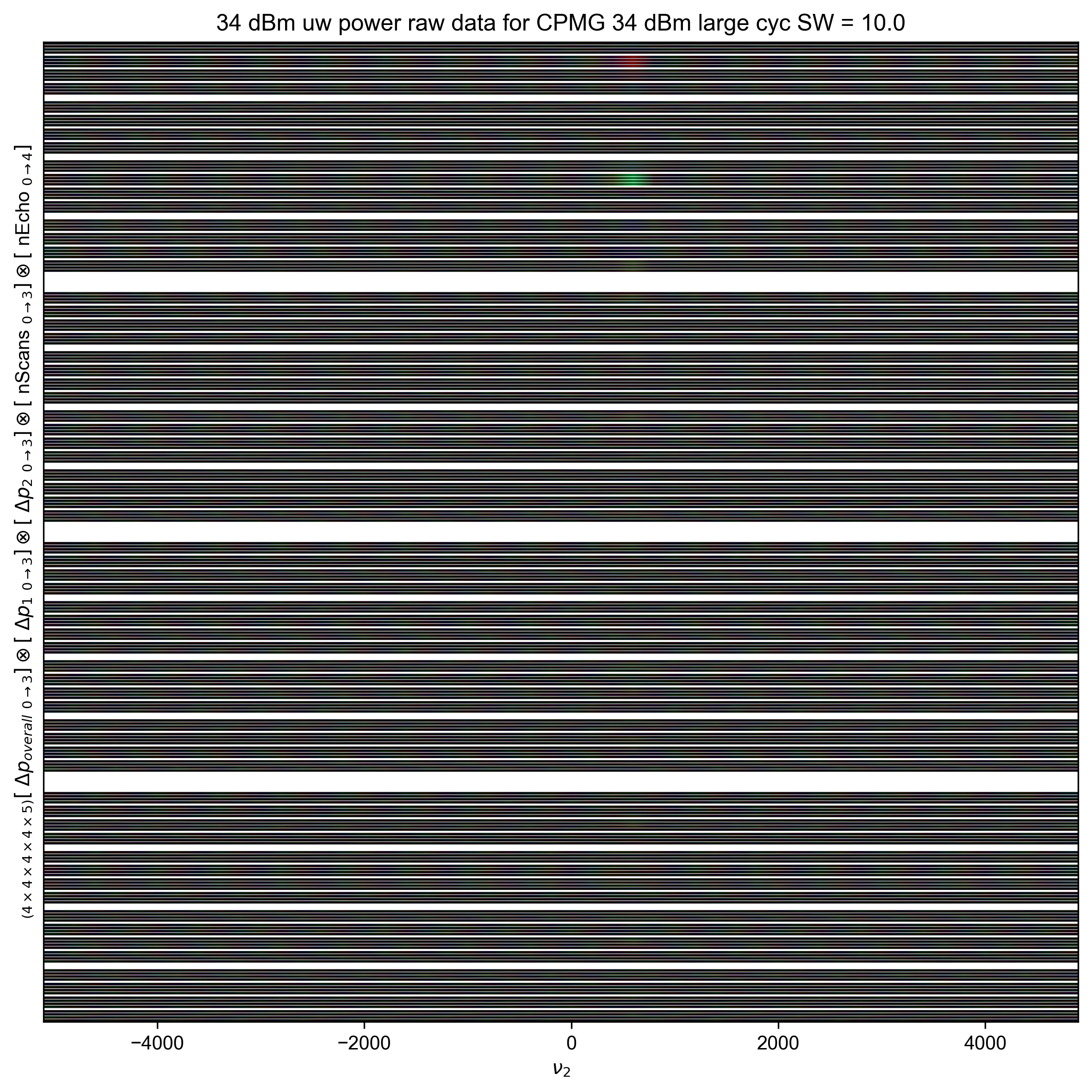

  • 34 dBm uw power raw data for CPMG 34 dBm large cyc SW = 10.0

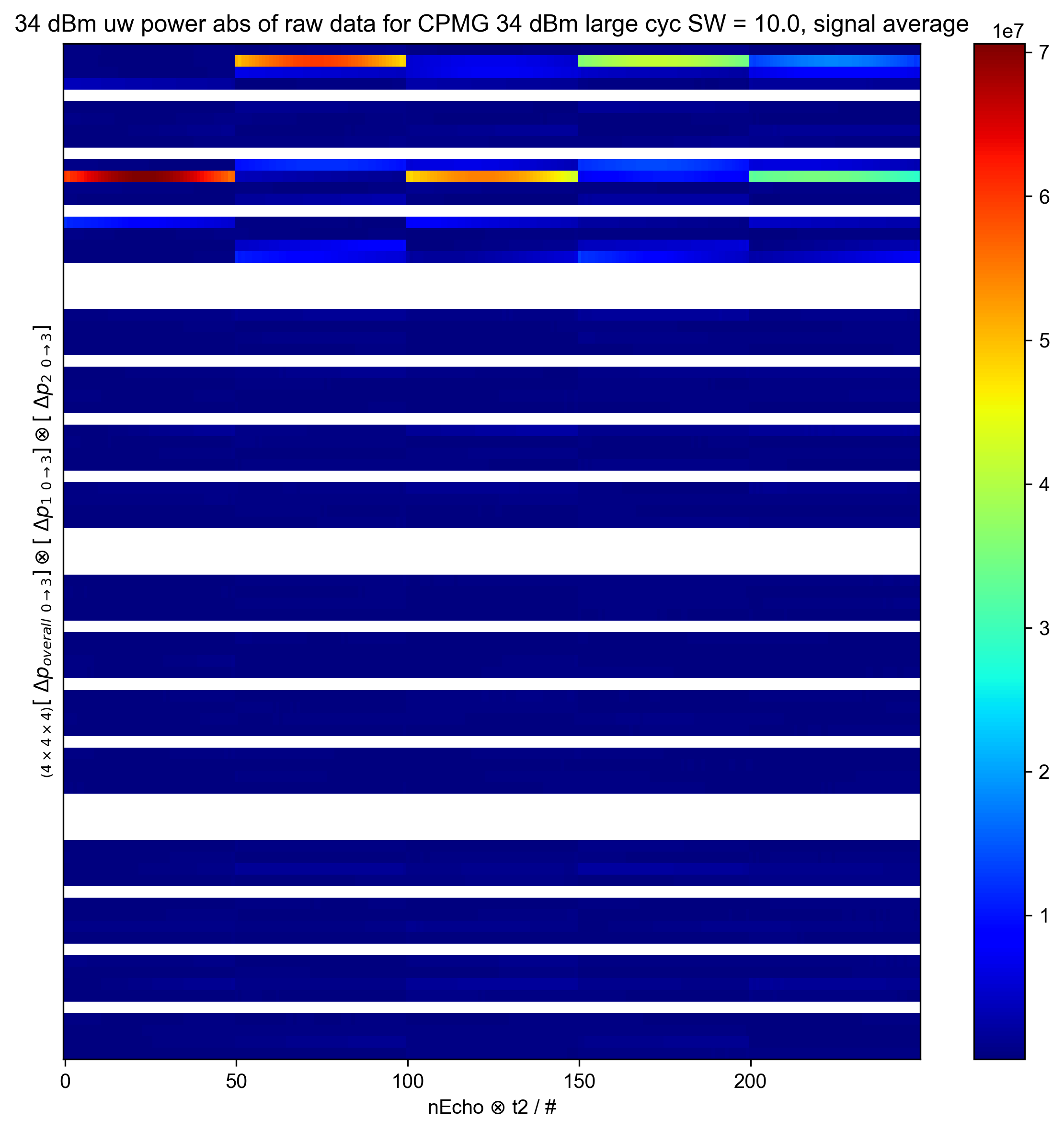

  • 34 dBm uw power abs of raw data for CPMG 34 dBm large cyc SW = 10.0, signal average
