Phase Cycling Noise

A demo of the correlation alignment on a dataset with a lot of phase cycling noise

•
•
•

You didn't set units for t2 before saving the data!!!
[(12, 'vd'), (2, 'ph2'), (2, 'ph1'), (2048, 't2')]

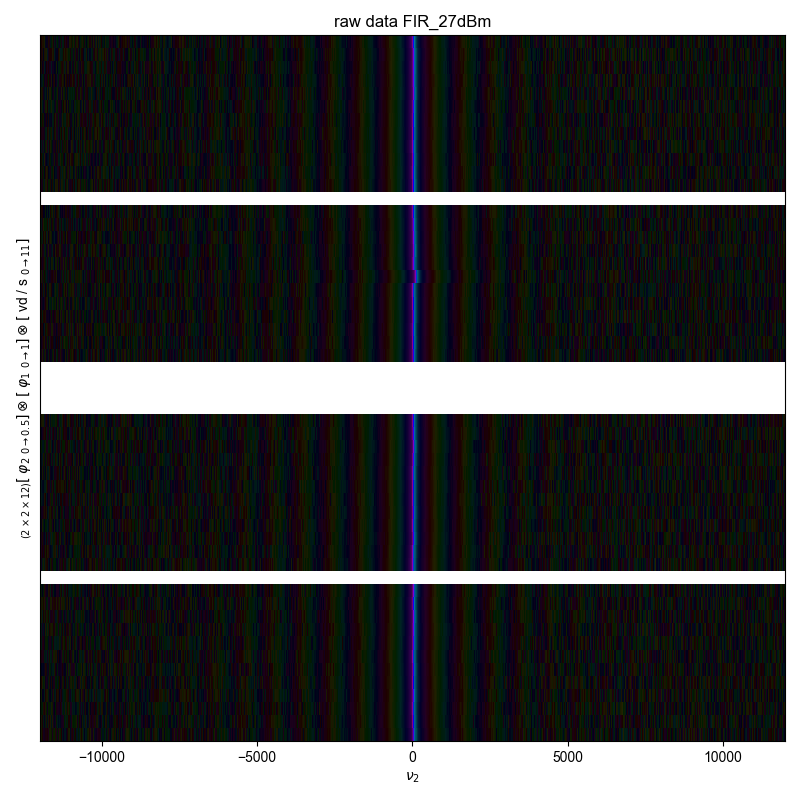

1: raw data FIR_27dBm |||(None, None)

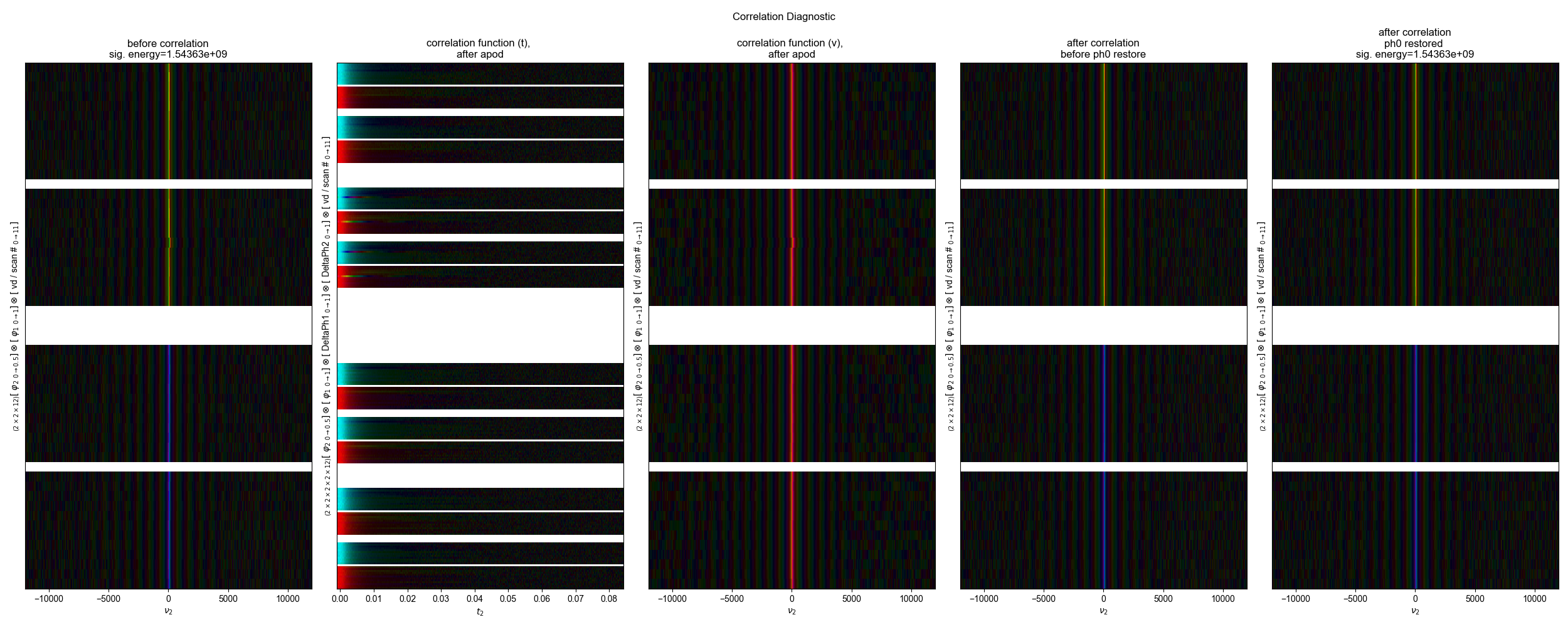

2: Correlation Diagnostics |||(None, None)

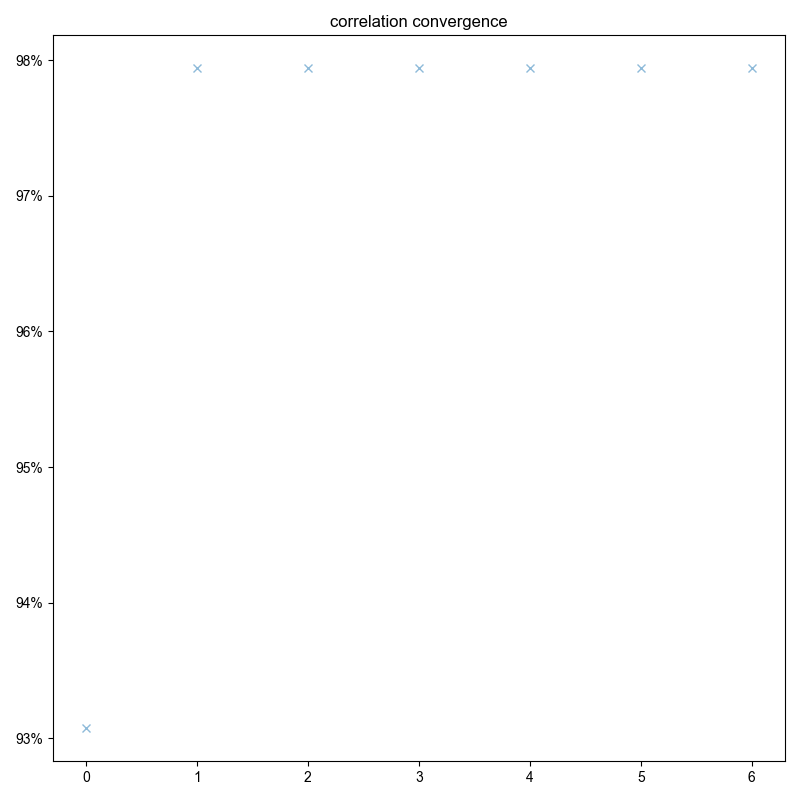

3: correlation convergence |||(None, None)

from pyspecdata import figlist_var, find_file
from pyspecProcScripts import correl_align
from numpy import exp, pi

save_fig = False
this_figsize = (9, 5.56)
with figlist_var() as fl:
    for date, id_string, node_name in [
        ("210607", "TEMPOL_100mM_cap_probe_DNP", "FIR_27dBm"),
    ]:
        filename = date + "_" + id_string + ".h5"
        nodename = "signal"
        nodename = node_name
        s = find_file(filename, expno=nodename, exp_type="ODNP_NMR_comp/ODNP")
        s = s["nScans", 0]
        print(s.shape)
        s.reorder(["ph2", "ph1", "vd", "t2"])
        s.setaxis("vd", "#")
        s.ft(["ph1", "ph2"])
        fl.next("raw data %s" % node_name)
        s["vd", 0] *= -1
        s.setaxis("t2", lambda x: x - 1.06e-3)
        s.ft("t2", shift=True)
        s.ift(["ph1", "ph2"])
        s *= exp(s.fromaxis("ph2") * 2 * pi * 1j)
        fl.image(s)
        s.ift("t2")
        s /= exp(s.fromaxis("ph2") * 2 * pi * 1j)
        s.ft(["ph1", "ph2"])
        s.ift(["ph1", "ph2"])
        signal_pathway = {"ph1": 0, "ph2": 1}
        s.ft("t2")
        opt_shift, sigma, mask_func = correl_align(
            s,
            indirect_dim="vd",
            signal_pathway=signal_pathway,
            sigma=3000 / 2.355,
            max_shift=300,
            fl=fl,
        )
